The free fire door inspection checklist PDF
The 41-point checklist behind every DoorTRACE inspection, as a printable A4 PDF: an initial survey for newly registered doors, all 41 checks across the full door assembly, a defect log and a sign-off. Aligned to BS 8214:2026. No email address required, just download it.
4 pages · A4 · Free to print and share within your organisation · FSO 2005 · FSER 2022 · BS 8214:2026
A complete fire door inspection on four pages
This is not a generic checklist reformatted from somewhere else. It is the paper version of the structured inspection built into the DoorTRACE platform, the one our engineers run on every door, released as a free PDF. Our guide to the full fire door inspection checklist walks through every item and the safety reason behind it.

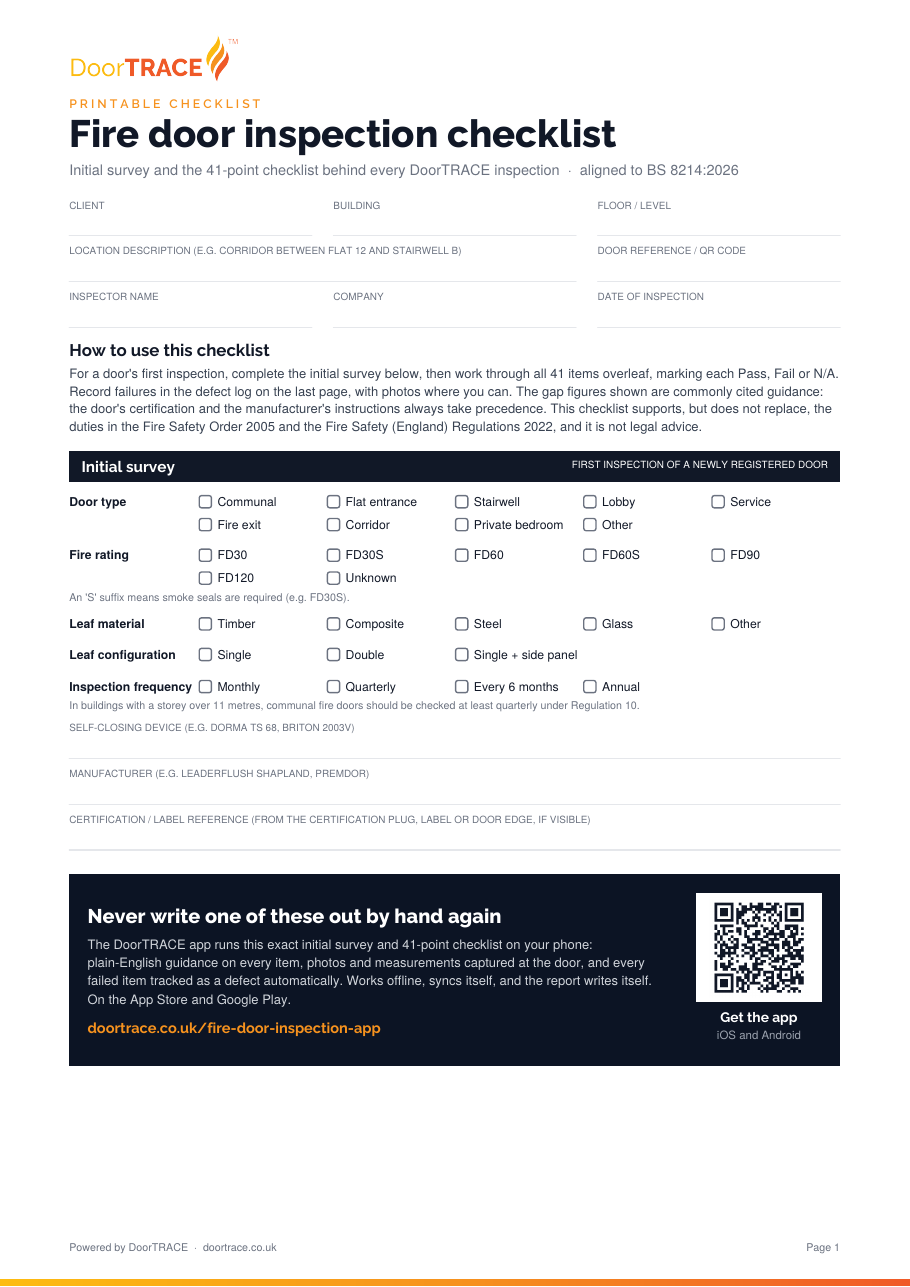

Initial survey
For a door's first inspection: door type, fire rating, leaf material and configuration, inspection frequency, closer, manufacturer and certification reference. The same questions the DoorTRACE app asks when a newly registered door is inspected for the first time.

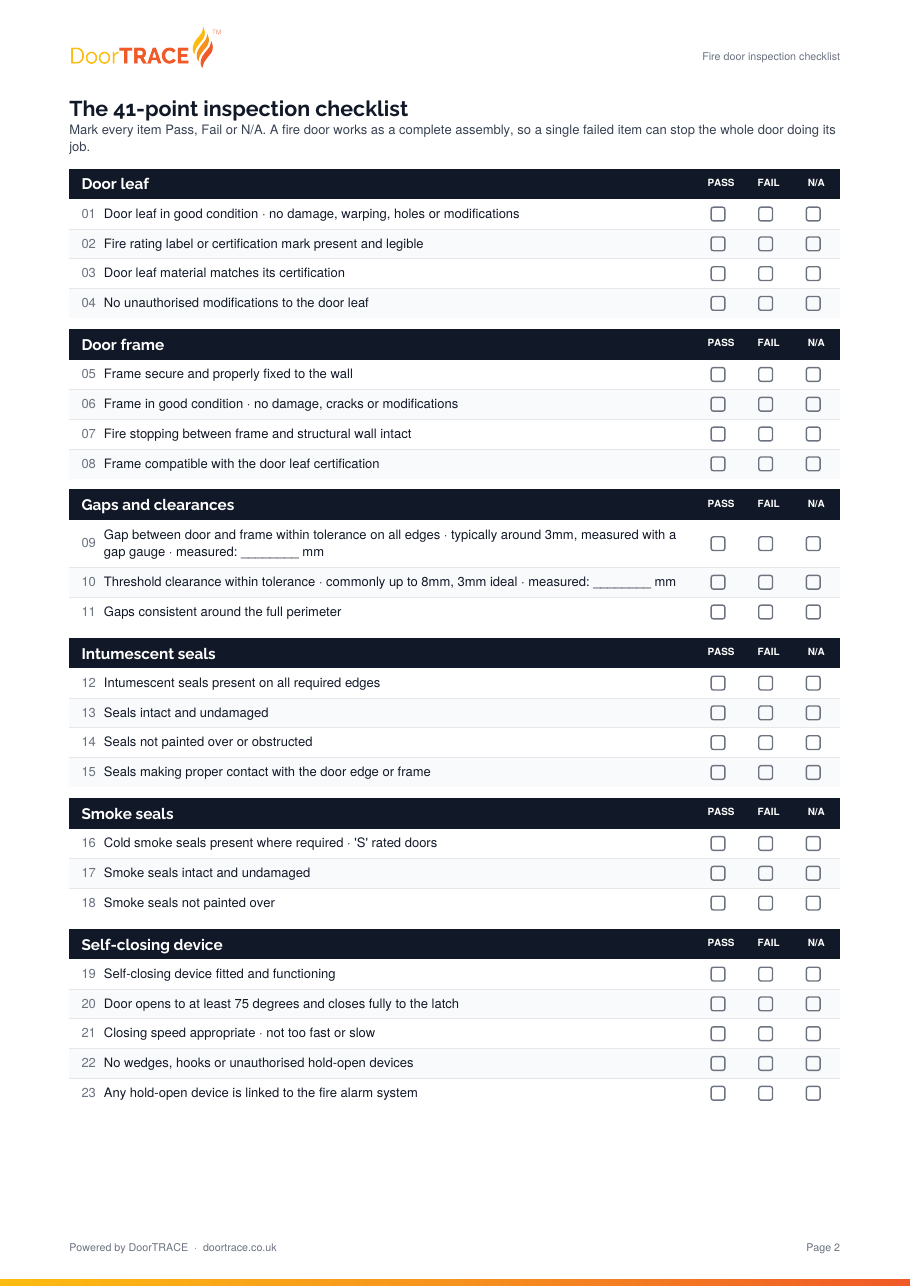

The 41-point checklist
Every check across the full assembly: leaf, frame, gaps and clearances, intumescent and smoke seals, self-closing device, hinges, glazing, hardware, signage and overall condition. Pass, Fail or N/A on each item, with measurement boxes for the gap checks.
Defect log and sign-off
A structured log for every failed item: what was found, its priority and the action needed, plus a sign-off block for the inspector's signature, name and company.
Built for the clipboard
Four A4 pages designed to be printed and filled in by hand, with an access record for flat entrance doors and lined space for engineer notes. Free to print and share within your organisation.
What a fire door inspection checklist covers
A fire door only works as a complete assembly, so a proper checklist works through that assembly methodically. The 41 points group into the areas below. The detailed standard inspectors work to is BS 8214:2026, and in buildings with a storey over 11 metres, Regulation 10 sets the minimum checking frequency: communal fire doors at least quarterly, flat entrance doors at least annually.
Damage, warping, unauthorised modifications, a legible certification label, secure fixings and intact fire stopping between frame and wall.
The perimeter gap, typically around 3mm, and the threshold clearance, measured with a gap gauge rather than judged by eye.
Present, continuous, undamaged and not painted over. Cold smoke seals are checked on 'S' rated doors.
Closes fully into the frame and engages the latch from any angle, with no wedges or unauthorised hold-open devices.
The right number of fire-rated hinges with secure fixings, fire-rated glazing with intact beads, and compatible locks, latches and letterplates.
The correct 'Fire Door Keep Shut' signage, no evidence of fire or smoke damage, and a door that closes and latches securely.
The gap figures on the checklist are commonly cited guidance: a door's certification and the manufacturer's instructions always take precedence. For the story of how the 41 points came together and why BS 8214:2026 validated the whole-assembly approach, read inside the DoorTRACE 41-point checklist.
On paper, every answer stops at the tick
The PDF is a solid checklist, and if paper is where you are today, use it. But the ticks stay on the page, the defects wait for someone to type them up, and the history lives in a filing cabinet. The DoorTRACE app runs this exact initial survey and 41-point checklist on the phone already in your pocket, and the record is complete the moment you walk away from the door.
Plain-English guidance on every one of the 41 items
Photos and measurements captured at the door, even offline
Failed items become tracked defects automatically
Every result written to a permanent golden thread audit trail
Branded PDF reports that generate themselves, nothing rekeyed
See the digital version on your own doors
Tell us a little about your portfolio and we'll walk one of your buildings through the app and the portal: the same survey and checklist as the PDF, with the photos, defects and reports handled for you. No obligation, no pressure.
